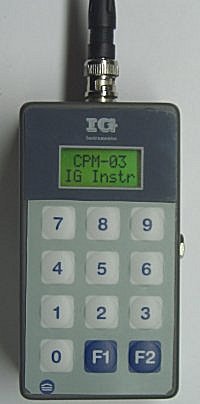

Very Low Frequencies Counter CMP-03
The Counter CPM-03 was developed to measure Very Low Frequencies, below 1Hz, with two decimals accuracy.
Highlight Aplication are
Frequencies Measuraments from 0.01Hz to 65535Hz,
Counter up to 65535 pulses,
Time Measurement until arriving 30 pulses,
Pulses Measurement during 30 seconds,
Frequency Average Measurement in a minute,
Speed of Wind Measurement with Anemometers,
Volume Measurement by PDMeter,
Flow Measurement by Turbines,
Based on microprocessors, this counter has the required intelligence to satisfy the necessities of Hydrometry and Petroleum market .
Provided with 4 rechargables batteries ("AA" type ), this instrument has 2 months of autonomy on normal use, since it has inside a TimeOut that "Turn Off" itself .
|
 |
|
Technical characteristics
- Pulse input can be of dry contact (Relay), (ReedSwitch), (Iron straps), like electronics, (TTL), (Effect Hall), (Open Collector), types.
- Provided with 2 lines of 8 alphanumeric characters display with backlight.
- Totally keyboard configurables.
- Sound (Beeper) that indicates the entrance of pulses.
- Up to 16 of K-factor Settings by instrument.
- Internal selection of up to 500 instruments.
- PC Interface to upload all factors by Software CPM_03.zip
- Made in injected aluminum box.
- Possibility to be approved / aplied like a Intrisincally Safe Instrument.
For additional information, please download this manual Contador_CPM-03.pdf
|
Very Low Frequencies Counter CMP-01
The counter CPM-01 has been developed to count low frequencies below 1Hz.
Based on microprocessors, this counter has the required intelligence to satisfy hydrology market.
Basically oriented to count windlass pulses, this instrument allows to work in three different ways: |
 |
1) Like Frequency meter up to 65535 Hertz
2) Like Counter up to 65535 Pulses
3) Like Windlass Counter (Per Time or Pulse)
Provided with 4 rechargables batteries ("AA" type ), this instrument has a total autonomy of 48Hs, by its display TimeOut.
In the Windlass counter mode the user can be setting a pulse counter operatrion for 30 or 60 seconds or a timer counter for 30 or 60 pulses. In both cases a beeper will be activated by the events.
This equipment was developed for Brazilian market
Technical characteristics
- Pulses input can be of dry contact (Relay), (ReedSwitch), (Iron straps), like electronics, (TTL), (Effect Hall), (Open Collector), types.
- Total consumption is between 30 and 130 mA
- This instrument could be powered with 4 “AA” batterie.
- Made in plastic box, with 140x95x47 millimeters dimensions.
For more infromation please download the manual Contador_CPM-01.pdf
|
|
|
|
IG Instruments is a services company, dedicated to electronic development and certification of instruments of measurement, that groups all the activities that their owners from 1979 have carried out in the scope of the automatization, Deep strongly in the automatization of terminals of Dispaches, like in the development of special electronic instruments for meteorological engineering, hydrology developing evporimetrer equipment and infiltrometer, unique in the market, fortified with own capitals. IG Instruments is at the moment a company dedicated to a the development of new technologies in the scopes of petroleum like of hydrology, attending Argentine and Brazilian companies.
Our excellent activities in the scope of the hidrométrica are the Manufacture of instruments of measurement for the area of hydrometry like for example our DataLoggers Monochannels for pluviometers and limnimeters , our pulses counters for very low frequency or VLF, the Automatic Evaporimeter class "A" tank (electronic), that it works like a meteorological power station with the appropriate control of the volume that evaporates in tank, the measurement of evaporation with a precision of the order of the micrometer, with the calculation of the volumetric expansion of the steel and the expansion of the water contained in the class "A" tank.
The Electronic Class "A" tank Automatic Evaporimeter, allows the measurement of evaporation of the water contained, measurement of water evaporation, measurement of evaporation of h2o, automatic measurement of water evaporation in pattern class "A" tank, the Evaporimeter tank or the Automatic Evaporimeter, has to datalogger of automatic measurement of all variables like the Evaporation of the water, rain, solar radiation, ambient humidity, temperature of the tank, low wind speed, and additional high wind speed, wind direction altoa, humidity of the ground, temperature of the ground, battery voltage, etc. This to datalogger approximately allows about to 2000 registries all its corresponding date and hour, granting an autonomy of but of 2 months in field.
The data stored in this memory can be downloaded from their of serial communication port "RS232C", or RS485. or simply reading extractable / removable memory EEPROM from any other datalogger. Like for example the DL1CH-PLUV100 or the DL1CH-LIM100 or the DL2CH-2000. For the measurement of Volumes, Speeds, we have developed an instrument that satisfies to the hydrologist and the oil tankers. The CPM-03 Counter is a developed count of measure frecquencies below 1Hz, accurately of two decimal digits. The excellent applications are, Measurement of Frequencies from 0.01Hz to 65535Hz, counter up 65535 pulses, Measurement of time to arriving 30 pulses, Measurement of Pulses during 30 seconds, Measurement of Pulses during 60 seconds, Measurement of Frequency Average in a minute, Measurement of Speed of Wind with 16 point of Anemometers factors, Measurement of Volume by means of PDMeter, Measurement of Flow by Turbines etc.
All the meters curves data of each one of the instruments could be downloaded from a PC, supporting to 500 different instruments. Based on this technology, we have also developed a measuring instrument of Speed of the water in opened channels like naturals Rivers. For the measurement of speed of rivers a hydraulic windlass is used, which with its turn indicates a frequency, and from his calibration card (with 16 points or 16 Kfactors) it is possible to integrate that frequency like a series of speeds or volumes. "Guincho-Molinete" windlass its appropriate counterbalance, it is possible to measure the depth of the river, with his consequent speeds, to store these data in a removable memory EEPROM that from any other datalogger is possible to lower it to PC.
As resulting from this information, is possible to extract to the profile of the river to be able to thus determine the proportions to the area and with the speed the volume of he himself. This system is denominated System of Automatic Measurement of Hydraulic Speed "SMAVH".
